High Precision Low Current Hall Sensor 10mA 50mA Output for Precision Measurement and Detection

बातचीत
MOQ
बातचीत योग्य
कीमत
High Precision Low Current Hall Sensor 10mA 50mA Output for Precision Measurement and Detection
विशेषताएं गेलरी उत्पाद विवरण अब बात करें
विशेषताएं
निर्दिष्टीकरण
वोल्टेज आपूर्ति: ±15V ±5%
इनपुट श्रेणी निर्धारण: 10mA
निर्धारित उत्पादन: 50एमए ±0.5%
इन्सुलेशन वोल्टेज: 6KV,50HZ,1 मिनट
परिचालन तापमान: -10 ~ + 80 ℃
भंडारण तापमान: -25~+85℃
प्रमुखता देना:

Low Current Hall Sensor 10mA

,

Hall Effect Current Sensor 50mA

,

Precision Measurement Hall Sensor

मूलभूत जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Shinhom
प्रमाणन: RoHS
मॉडल संख्या: HBV2500-10mA
भुगतान & नौवहन नियमों
पैकेजिंग विवरण: दफ़्ती
प्रसव के समय: 4 ~ 8 सप्ताह
भुगतान शर्तें: टी/टी
आपूर्ति की क्षमता: 1000000/महीना
उत्पाद विवरण

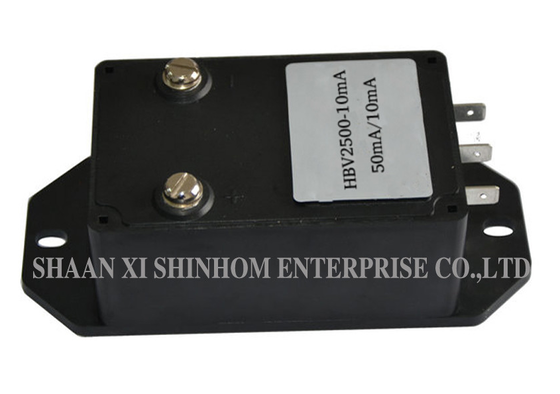

The HBV2500-10mA closed-loop Hall effect current sensor uses a closed-loop (compensation) principle, providing electrical isolation between the primary and secondary circuits. It accurately measures DC, AC, or pulse currents with an operating current of 10mA and a rated output current of 50mA±0.5%. The product has a supply voltage of ±15V±5%. It offers high accuracy, excellent linearity, low temperature drift, and high external interference rejection. It features optimised
