उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| तार: | चौड़ाई 1.0-2.0 मिमी, मोटाई 0.1-0.5 मिमी | अनुपात बदल जाता है: | 1: 1 |
|---|---|---|---|
| कोर: | फेराइट खोखले वर्ग | परीक्षण आवृत्ति: | 10KHz |
| अवस्था: | एकल चरण | आपरेटिंग तापमान: | -40 -C से + 150ºC |
| हाई लाइट: | आम मोड टॉरॉयडल चोक,कॉमन मोड पावर लाइन चोक |
||

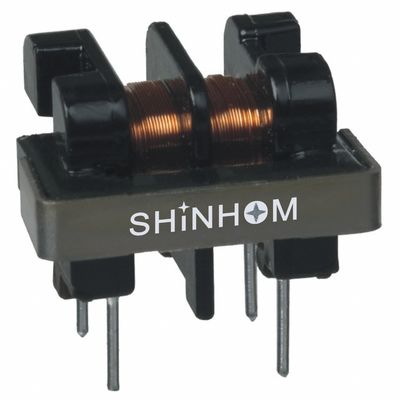

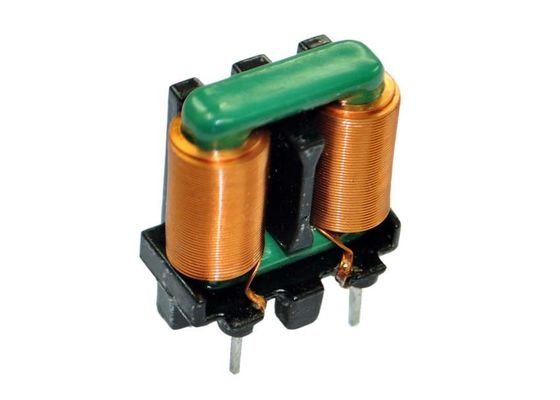

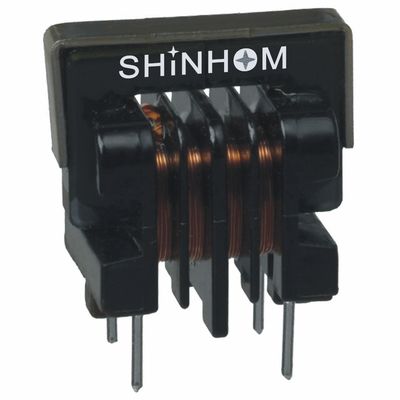

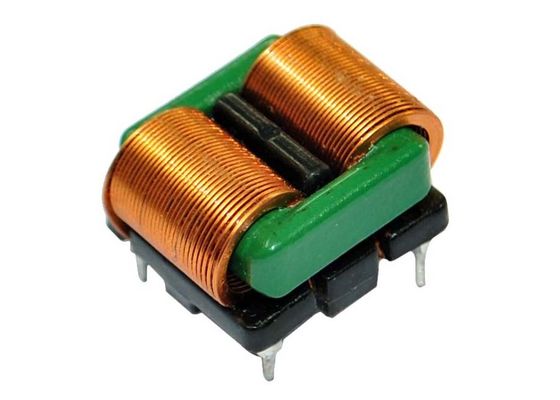

हाई फ्रीक्वेंसी फ्लैट वायर हाई करंट कॉमन मोड चोक कॉइल और इंडक्शन को कस्टमाइज़ किया जा सकता है, ईएमआई फ़िल्टर
| विशिष्टता | अधिष्ठापन मिन 1KHZ 0.25V | आयाम (मिमी अधिकतम) | वर्तमान (ए) | पावर (डब्ल्यू) | ||||||||
| डब्ल्यू | डी | एच | एल | ए | क्षैतिज | खड़ा | मैक्स | मैक्स | ||||
| P1 | P2 | P1 | P2 | |||||||||
| SQ1515 | > 15mH | 16 | 22 | 22 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.5 | 60 |
| SQ1515 | > 20mH | 16 | 22 | 22 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.2 | 60 |
| SQ1515 | > 25mH | 16 | 22 | 22 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.2 | 60 |
| SQ1515 | > 15mH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.5 | 60 |
| SQ1515 | > 20mH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.2 | 60 |
| SQ1515 | > 25mH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.2 | 60 |
| SQ1615 | > 15mH | 16 | 22 | 23 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.5 | 65 |
| SQ1615 | > 20mH | 16 | 22 | 23 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.2 | 65 |
| SQ1615 | > 25mH | 16 | 22 | 23 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.2 | 65 |
| SQ1615 | > 15mH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.5 | 65 |
| SQ1615 | > 20mH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.2 | 65 |
| SQ1615 | > 25mH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.2 | 65 |
| SQ1918 | > 12mH | 15 | 25 | 26 | 4 | 0.8 | 12.8 | 10 | 10 | 10 | 2.0 | 180 |
| SQ1918 | > 20mH | 15 | 25 | 26 | 4 | 0.8 | 12.8 | 10 | 10 | 10 | 1.5 | 180 |
| SQ1918 | > 30mH | 15 | 25 | 26 | 4 | 0.8 | 12.8 | 10 | 10 | 10 | 1.2 | 180 |
| SQ1918 | > 12mH | 22 | 24 | 13 | 4 | 0.8 | 16.8 | 15 | - | - | 2.0 | 180 |
| SQ1918 | > 20mH | 22 | 24 | 13 | 4 | 0.8 | 16.8 | 15 | - | - | 1.5 | 180 |
| SQ1918 | > 30mH | 22 | 24 | 13 | 4 | 0.8 | 16.8 | 15 | - | - | 1.2 | 180 |
| SQ2418 | > 12mH | 15 | 24 | 32 | 4 | 0.8 | 12.5 | 10 | - | - | 2.5 | 250 |
| SQ2418 | > 20mH | 15 | 24 | 32 | 4 | 0.8 | 12.5 | 10 | - | - | 1.8 | 250 |
| SQ2418 | > 30mH | 15 | 24 | 32 | 4 | 0.8 | 12.5 | 10 | - | - | 1.5 | 250 |
| SQ2418 | > 12mH | 22 | 26 | 15 | 4 | 0.8 | 16.8 | 15 | - | - | 2.5 | 250 |
| SQ2418 | > 20mH | 22 | 26 | 15 | 4 | 0.8 | 16.8 | 15 | - | - | 1.8 | 250 |
| SQ2418 | > 30mH | 22 | 26 | 15 | 4 | 0.8 | 16.8 | 15 | - | - | 1.5 | 250 |
| SQ2724 | > 7mH | 18 | 30 | 38 | 4 | 0.8 | 4 पिन | - | - | 3.5 | 280 | |
| SQ2724 | > 15mH | 18 | 30 | 38 | 4 | 0.8 | 4 पिन | - | - | 2.5 | 280 | |
| SQ2724 | > 20mH | 18 | 30 | 38 | 4 | 0.8 | 4 पिन | - | - | 1.8 | 280 | |
| SQ2724 | > 7mH | 25 | 31 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 3.5 | 280 |
| SQ2724 | > 15mH | 25 | 31 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 2.5 | 280 |
| SQ2724 | > 20mH | 25 | 31 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 1.8 | 280 |
| SQ2820 | > 7mH | 16 | 30 | 38 | 4 | 0.8 | 4 पिन | - | - | 2.0 | 300 | |
| SQ2820 | > 20mH | 16 | 30 | 38 | 4 | 0.8 | 4 पिन | - | - | 2.5 | 300 | |
| SQ2820 | > 30mH | 16 | 30 | 38 | 4 | 0.8 | 4 पिन | - | - | 5.0 | 300 | |
| SQ2820 | > 7mH | 28 | 35 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 2.0 | 300 |
| SQ2820 | > 20mH | 28 | 35 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 2.5 | 300 |
| SQ2820 | > 30mH | 28 | 35 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 5.0 | 300 |
| SQ3126 | > 8mH | 22 | 34 | 38 | 4 | 0.9 | 18 | 16 | - | - | 8.0 | 400 |
| SQ3126 | > 8mH | 22 | 34 | 38 | 4 | 0.9 | 18 | 16 | - | - | 5.0 | 400 |
| SQ3126 | > 10mH | 22 | 34 | 38 | 4 | 0.9 | 18 | 16 | - | - | 3.5 | 400 |
| SQ3126 | > 25mH | 22 | 34 | 38 | 4 | 0.9 | 18 | 16 | - | - | 3 | 400 |
| SQ3126 | > 8mH | 28 | 35 | 18 | 4 | 1.0 | 20 | 16.8 | - | - | 8.0 | 400 |
| SQ3126 | > 8mH | 28 | 35 | 18 | 4 | 1.0 | 20 | 16.8 | - | - | 5.0 | 400 |
| SQ3126 | > 10mH | 28 | 35 | 18 | 4 | 1.0 | 20 | 16.8 | - | - | 3.5 | 400 |
| SQ3126 | > 25mH | 28 | 35 | 18 | 4 | 1.0 | 20 | 16.8 | - | - | 3 | 400 |
| SQ4391 | > 12mH | - | - | - | - | - | - | - | - | - | 7 | 600 |
| SQ4391 | > 12mH | 28 | 45 | 16 | 4 | 1.0 | 39 | 21 | - | - | 7 | 600 |
विशेषताएं:
आवेदन:
नोट: अनुकूलित उपलब्ध है
